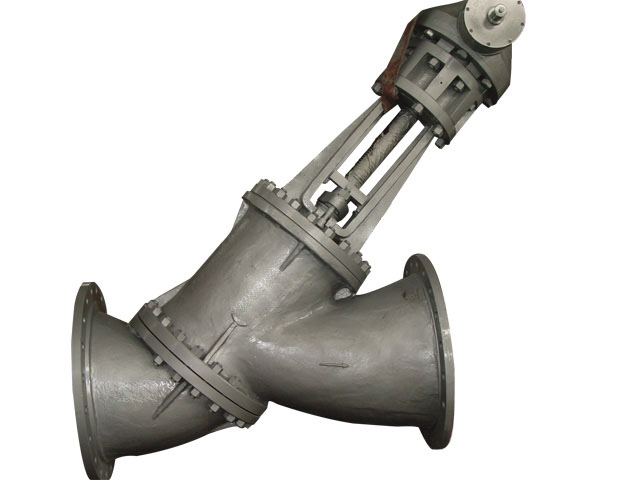

Y-type Slurry Valve
Y-type Slurry Valve
The Y-type slurry valve’s Y-type design reduces fluid resistance and prevents particle deposition, and it has good abrasion resistance and sealing, suitable for high abrasion and heavy-duty working conditions.
Technical Specifications
Materials:
Body:
Cast Steel：
ASTM A216 WCB, WCC | ASTM A352 Gr. LC3, LCB | ASTM A217 gr.B, C5, C12, WC6, WC9, WC12;
Stainless Steel:
ASTM A351 CF8, CF3, CF8M, CF3M, CK20, CG8M, A351 CK3MCuN etc;
Duplex:
A890 Gr.4A, Gr. 6A （SAF2205, 2507 etc）;
Nickel Alloy:
Monel 400 | Inconel 600, 625 | Hastelloy C27, C22, B2 | Incoloy 800/800HT, 825 etc.
Ball:
ASTM A105 w/ENP | ASTM A350 Gr. LF2 w/ENP | ASTM A182 Gr. F316 | ASTM A182 Gr. F316 w/ENP
Stainless Steel | Duplex SS | Nickel Alloy etc.
Seat:
RPTFE | Nylon | Davilon | PEEK | Tek-Fil® | TFM
Stem:
ASTM A479 Type 410 | 17-4PH | XM-19 | ASTM A182 F316 | Stainless Steel | Duplex SS | Nickel Alloy etc.
Caliber Range
1/2“ to 24” | DN15~DN600
Pressure Range
Class150 to 2500 | PN10 to PN420
Operating Temperature
-29℃ to 560℃ | -20.2℉ to 1040℉
Operation
Handwheel | Bevel Gear | Electric
Connection
RF | RTJ | BW
Design Standard
BS1873 | GB/T 12235
Features And Benefits
Y-type slurry valve is with 45 degrees outlet or inlet to change the flow direction of the media to arrange the overall layout of the plant, the valve plate can also be used as a flow adjustment needs. The valve is composed of left and right pieces, the seat can be disassembled after a long time of use for replacement. anti-scouring, corrosion-resistant baffle will be wrapped in the valve in the middle of the chamber gasket part.
The valves are widely used in chemical plants, mines, metallurgy, and alumina industries.
Parabolic Valve Plate
The valve plate is designed in a parabolic shape to improve the accuracy and stability of flow regulation.
Line Seal Design
The sealing surface adopts line seal structure to ensure stable sealing and reduce the risk of leakage.
Scratch And Corrosion Resistance
Excellent scour and corrosion resistance, suitable for high scour and corrosive media.
Hardened Sealing Faces
The sealing surface is treated with cemented carbide and tungsten carbide to improve abrasion and corrosion resistance and extend valve life.
Graphite Packing
Adopting flexible graphite and braided graphite packing, the sealing performance is reliable and can be adapted to the harsh working conditions.
