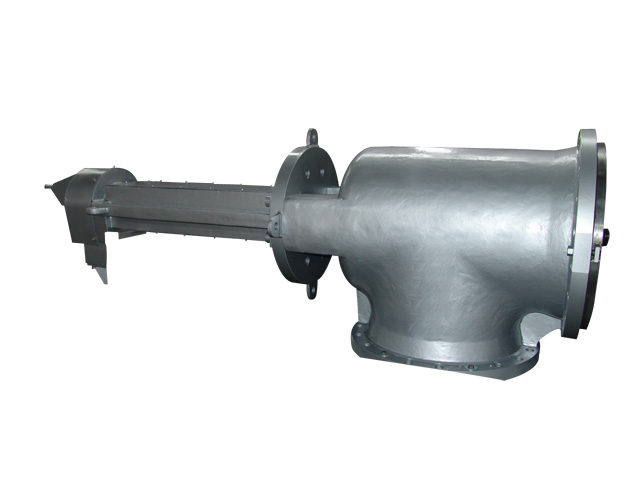

Angle Type Dumping Valve
Angle Type Dumping Valve
Angle type dumping valve is used for discharging fluid at the bottom of container or pipeline, which is suitable for chemical, pharmaceutical and other industries.
Technical Specifications
Materials:
Body:
Cast Steel：
ASTM A216 WCB, WCC | ASTM A352 Gr. LC3, LCB | ASTM A217 gr.B, C5, C12, WC6, WC9, WC12
Stainless Steel:
ASTM A351 CF8, CF3, CF8M, CF3M, CK20, CG8M, A351 CK3MCuN etc.
Duplex:
A890 Gr.4A, Gr. 6A (SAF2205, 2507 etc.)
Nickel Alloy:
Monel 400 | Inconel 600, 625 | Hastelloy C27, C22, B2 | Incoloy 800/800HT, 825 etc.
Ball:
ASTM A105 w/ENP | ASTM A350 Gr. LF2 w/ENP | ASTM A182 Gr. F316 | ASTM A182 Gr. F316 w/ENP
Stainless Steel | Duplex SS | Nickel Alloy etc.
Seat:
RPTFE | Nylon | Davilon | PEEK | Tek-Fil® | TFM
Stem:
ASTM A479 Type 410 | 17-4PH | XM-19 | ASTM A182 F316 | Stainless Steel | Duplex SS | Nickel Alloy etc.
Caliber Range
1/2“ to 24” | DN15 to DN600
Pressure Range
Class150 to 2500 | PN10 to PN420
Operating Temperature
-29℃ to 560℃ | -20.2℉ to 1040℉
Operation
Handwheel | Bevel Gear | Electric
Connection
RF | RTJ | BW
Design Standard
BS1873 | GB/T 12235
Features And Benefits
This kind of valve is installed in the tank to open the tank to release the media, because it is installed in the tank on the flange is flat, also known as flat bottom discharge valve, tight pipeline connection. anti-scouring, corrosion-resistant baffle will be wrapped in the valve in the cavity gasket parts.
The valve is widely used in chemical plants, mines, metallurgy, alumina industry.
Parabolic Valve Plate
The parabolic valve plate design improves flow control accuracy and provides stable regulation.
Line Seal Structure
The use of line seal sealing surfaces ensures long-term sealing stability and reduces the risk of leakage.
Scour And Corrosion Resistance
The sealing faces provide excellent resistance to scouring and corrosion and can withstand harsh media conditions.
Carbide And Tungsten Carbide Seals
Carbide and tungsten carbide treated sealing faces greatly improve wear and corrosion resistance.
Graphite Packing
Equipped with flexible graphite and braided graphite packing to enhance sealing effect and ensure stability under high temperature and high pressure conditions.
