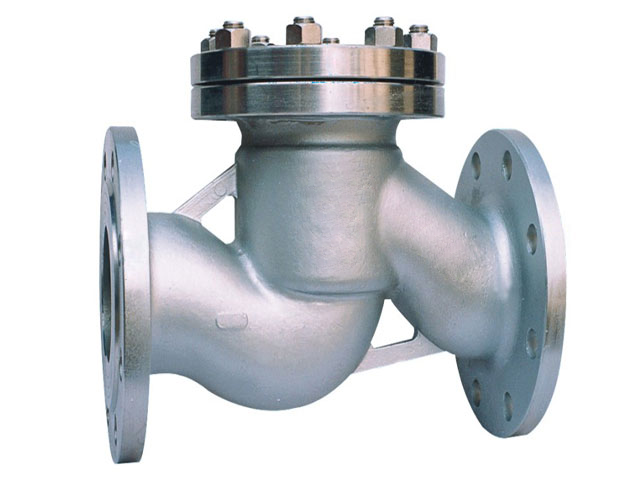

Lift Type Check Valve
Lift Type Check Valve
Lift check valve is to rely on the flow of the medium itself and automatically open and close the valve flap, used to prevent the medium backflow valve. It belongs to a kind of automatic valve, its main role is to prevent the media backflow, to prevent the pump and drive motor reversal, as well as the container medium discharge.
Technical Specifications
Materials:
Body:
Cast Steel：
ASTM A216 WCB, WCC | ASTM A352 Gr. LC3, LCB | ASTM A217 gr.B, C5, C12, WC6, WC9, WC12
Stainless Steel:
ASTM A351 CF8, CF3, CF8M, CF3M, CK20, CG8M, A351 CK3MCuN etc.
Duplex:
A890 Gr.4A, Gr. 6A (SAF2205, 2507 etc.)
Nickel Alloy:
Monel 400 | Inconel 600, 625 | Hastelloy C27, C22, B2 | Incoloy 800/800HT, 825 etc.
Ball:
ASTM A105 w/ENP | ASTM A350 Gr. LF2 w/ENP | ASTM A182 Gr. F316 | ASTM A182 Gr. F316 w/ENP
Stainless Steel | Duplex SS | Nickel Alloy etc.
Seat:
RPTFE | Nylon | Davilon | PEEK | Tek-Fil® | TFM
Stem:
ASTM A479 Type 410 | 17-4PH | XM-19 | ASTM A182 F316 | Stainless Steel | Duplex SS | Nickel Alloy etc.
Caliber Range
1/2“ to 60” | DN15 to DN1500
Pressure Range
Class150 to 2500 | PN10 to PN420
Operating Temperature
-196℃ to 560℃ | -320.8℉ to 1040℉
Connection
RF | RTJ | BW
Design Standard
BS1868 | ASME B16.34 | GB/T 12235
Temperature Range
-60℃ to 200℃ | -76℉ to 392℉
Features And Benefits
This valve is through the valve plate linear movement to the valve seat to realize the opening and closing of the valve.This kind of valve is mainly assembled in the horizontal pipeline, the main function is to prevent the medium backflow when the water pipe needs to be repaired and thus the pump is shut down.
Excellent Sealing Performance
Ensure good sealing effect, effectively prevent leakage, applicable to a variety of media and working conditions.
Lifting Valve Plate
Equipped with lifting valve plate design to enhance the accuracy of flow control and flexible operation.
Wide Range Of Applications
Adapt to a variety of working conditions, can be widely used in different industrial fields.
Quick Closing
The valve plate supports quick closing function, which improves the operation efficiency and reduces the switching time.
Low Closing Shock
The design effectively reduces the impact force when closing, reduces the vibration of the system, and protects the equipment and pipelines.
